Reinterpretation of Cross-Section Limits with Spey#
This tutorial shows how to convert cross-section limits into statistical models for inference using Spey. This approach will reinterpret cross-section curves as normal distributions for each mass point. This notebook reads the HEPData cross-section limits for the non-resonant RPV SUSY scenario from arXiv:2206.09997, fits continuous interpolating functions, and constructs a Spey default.normal statistical model to compute exclusion \(CL_s\) at arbitrary mass points and signal cross-sections.
Source data: HEPData record ins2098256-v1, Table 14 (Figure 12).
1. Read and Parse the CSV Data#
You will need to download the CSV data from HEPData for this part.
def parse_hepdata_csv(filepath):
"""Parse multi-block HEPData CSV into a dict of {label: (mass, values)} arrays.
Each block is separated by a header line containing column names.
Generic for any HEPData CSV with the same structure.
"""
blocks = {}
current_label = None
masses, values = [], []
with open(filepath) as f:
for line in f:
line = line.strip()
if not line or line.startswith("#"):
continue
parts = line.split(",")
try:
float(parts[0])
except ValueError:
if current_label is not None and masses:
blocks[current_label] = (np.array(masses), np.array(values))
current_label = parts[1].strip()
masses, values = [], []
continue
masses.append(float(parts[0]))
values.append(float(parts[1]))
if current_label and masses:
blocks[current_label] = (np.array(masses), np.array(values))
return blocks
CSV_PATH = "HEPData-ins2098256-v1-Cross-section_limits_-_non_resonant_scenario.csv"
data = parse_hepdata_csv(CSV_PATH)
# Readable key mapping
KEYS = {
"obs": "95% CL observed upper limits [pb]",
"exp": "95% CL expected upper limits [pb]",
"m1": "95% CL expected -1 s.d. upper limits [pb]",
"p1": "95% CL expected +1 s.d. upper limits [pb]",
"m2": "95% CL expected -2 s.d. upper limits [pb]",
"p2": "95% CL expected +2 s.d. upper limits [pb]",
"theory": "SUSY top squark cross section times acceptance [pb]",
}
for key, label in KEYS.items():
mass, vals = data[label]
print(f"{key:6s}: {len(mass)} points, mass range [{mass[0]:.0f}, {mass[-1]:.0f}] GeV")
obs : 43 points, mass range [500, 3000] GeV
exp : 43 points, mass range [500, 3000] GeV
m1 : 43 points, mass range [500, 3000] GeV
p1 : 43 points, mass range [500, 3000] GeV
m2 : 43 points, mass range [500, 3000] GeV
p2 : 43 points, mass range [500, 3000] GeV
theory: 43 points, mass range [500, 3000] GeV
2. Fit Interpolating Functions#
Cubic splines in log-log space (log(mass) vs log(cross-section)) ensure
positive-definite interpolation across several orders of magnitude.
This approach is generic for any similar cross-section distribution.
class LogSplineInterpolator:
"""Cubic spline interpolation in log-log space.
Parameters
----------
mass : array-like
Mass points in GeV.
values : array-like
Cross-section (or limit) values in pb.
"""
def __init__(self, mass, values):
self.mass_min = mass.min()
self.mass_max = mass.max()
self._spline = CubicSpline(np.log(mass), np.log(values))
def __call__(self, m):
m = np.asarray(m, dtype=float)
return np.exp(self._spline(np.log(m)))
def domain(self):
return self.mass_min, self.mass_max
# Build interpolators for every curve
interp = {}
for key, label in KEYS.items():
mass, vals = data[label]
interp[key] = LogSplineInterpolator(mass, vals)
print("Interpolators built for:", list(interp.keys()))
Interpolators built for: ['obs', 'exp', 'm1', 'p1', 'm2', 'p2', 'theory']

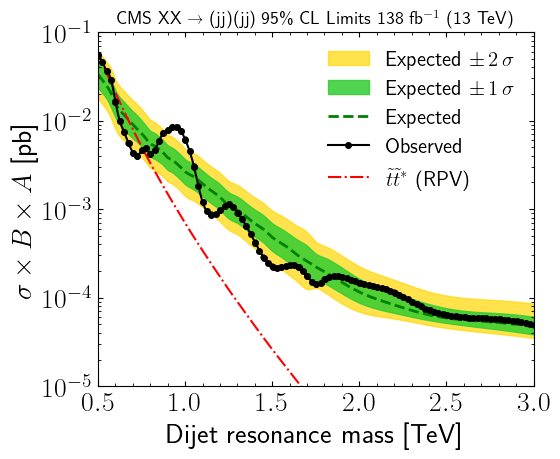

3. Validation Plot — Reproducing Figure 12#
4. Spey Statistical Model Construction#
Mapping cross-section limits to model parameters#
For the default.normal backend the likelihood at each mass point is
\[\mathcal{L}(\mu) = \frac{1}{\sigma\sqrt{2\pi}}
\exp\!\left[-\frac{1}{2}\left(
\frac{\mu\, \sigma_{\text{sig}} + \sigma_{\text{exp}} - \sigma_{\text{obs}}}{\delta\sigma}
\right)^{\!2}\right]\]
where every quantity lives in cross-section space (pb):
Spey parameter |
Physical meaning |
Source |
|---|---|---|
|
\(\sigma_{\text{sig}}\): BSM signal \(\sigma\times B\times A\) |
theory curve |
|
\(\sigma_{\text{exp}}\): expected (SM-only) limit |
CSV expected limit |
|
\(\sigma_{\text{obs}}\): observed limit |
CSV observed limit |
|
\(\delta\sigma\): \(1\sigma\) uncertainty on the expected limit |
\((\sigma_{+1\sigma} - \sigma_{-1\sigma})/2\) |
NORMAL_BACKEND = spey.get_backend("default.normal")
def build_spey_model(mass, signal_xsec):
"""Construct a Spey `default.normal` model at a given mass point.
Parameters
----------
mass : float
Resonance mass in GeV.
signal_xsec : float
BSM signal cross-section × branching fraction × acceptance [pb].
Must use the same BR × A conventions as the CMS limits.
Returns
-------
model : spey.StatisticalModel
params : dict
Derived parameters for diagnostics.
"""
obs_lim = float(interp["obs"](mass))
exp_lim = float(interp["exp"](mass))
m1_lim = float(interp["m1"](mass))
p1_lim = float(interp["p1"](mass))
m2_lim = float(interp["m2"](mass))
p2_lim = float(interp["p2"](mass))
# 1-sigma uncertainty on the expected limit from the ±1σ band
sigma_unc = (p1_lim - m1_lim) / 2.0
model = NORMAL_BACKEND(
signal_yields=[signal_xsec],
background_yields=[exp_lim],
data=[obs_lim],
absolute_uncertainties=[sigma_unc],
analysis=f"CMS-EXO-21-010_nonres_m{mass:.0f}",
)
params = dict(
mass=mass,
signal_xsec=signal_xsec,
obs_limit=obs_lim,
exp_limit=exp_lim,
m1_limit=m1_lim,
p1_limit=p1_lim,
m2_limit=m2_lim,
p2_limit=p2_lim,
sigma_unc=sigma_unc,
)
return model, params
def compute_exclusion(mass, signal_xsec):
"""Compute exclusion confidence level (1 − CLs) at μ = 1.
Parameters
----------
mass : float
Resonance mass in GeV.
signal_xsec : float
BSM signal σ × B × A [pb].
Returns
-------
excl_obs : float
Observed 1 − CLs. Signal excluded at 95% CL when ≥ 0.95.
excl_exp : list[float]
Expected 1 − CLs: [-2σ, -1σ, median, +1σ, +2σ].
"""
model, params = build_spey_model(mass, signal_xsec)
excl_obs = model.exclusion_confidence_level(
poi_test=1.0, expected=spey.ExpectationType.observed
)
excl_exp = model.exclusion_confidence_level(
poi_test=1.0, expected=spey.ExpectationType.aposteriori
)
return float(excl_obs[0]), [float(x) for x in excl_exp]
# Quick test using the CSV theory cross-section
for m_test in [500, 700, 1000]:
theory_xs = float(interp["theory"](m_test))
model_t, p_t = build_spey_model(m_test, theory_xs)
print(
f"m = {m_test} GeV: theory = {theory_xs:.4e} pb, "
f"obs = {p_t['obs_limit']:.4e}, exp = {p_t['exp_limit']:.4e}, "
f"σ_unc = {p_t['sigma_unc']:.4e}"
)
m = 500 GeV: theory = 5.9032e-02 pb, obs = 5.4735e-02, exp = 3.3169e-02, σ_unc = 1.0933e-02
m = 700 GeV: theory = 8.0006e-03 pb, obs = 4.3525e-03, exp = 9.0205e-03, σ_unc = 3.2119e-03
m = 1000 GeV: theory = 6.9786e-04 pb, obs = 6.1573e-03, exp = 2.6542e-03, σ_unc = 8.7190e-04
5. Exclusion \(CL_s\) Evaluation#
# ──────────────────────────────────────────────────────
# USER INPUTS — change these to query different points
# ──────────────────────────────────────────────────────
QUERY_MASS = 1000.0 # GeV
SIGNAL_XSEC = 0.001 # pb (σ × B × A)
# ──────────────────────────────────────────────────────
excl_obs, excl_exp = compute_exclusion(QUERY_MASS, SIGNAL_XSEC)
print(f"Mass = {QUERY_MASS:.0f} GeV, σ×B×A = {SIGNAL_XSEC:.1e} pb")
print(f"{'─' * 55}")
print(f" Observed CLs = {excl_obs:.4f} ")
print(f" Expected CLs:")
labels = [" −2σ", " −1σ", " med", " +1σ", " +2σ"]
for lbl, val in zip(labels, excl_exp):
print(f" {lbl}: CLs = {val:.4f}")
excluded = excl_obs >= 0.95
print(f"\n → Signal {'IS' if excluded else 'is NOT'} excluded at 95% CL.")
Mass = 1000 GeV, σ×B×A = 1.0e-03 pb
───────────────────────────────────────────────────────
Observed CLs = 0.4281
Expected CLs:
−2σ: CLs = 0.9637
−1σ: CLs = 0.8998
med: CLs = 0.7486
+1σ: CLs = 0.4751
+2σ: CLs = 0.1781
→ Signal is NOT excluded at 95% CL.

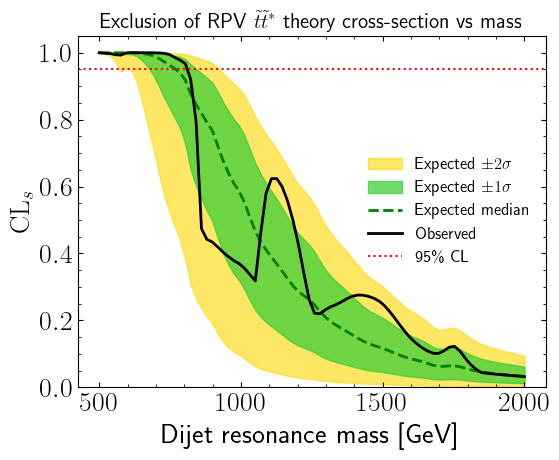

Exclusion scan: theory cross-section across mass#
